15 pin Williams power connector

[chubsta]

The main output plastic connector on my Williams power supply board is a 15 pin header type, the cab is currently running off a switcher but i would like to get it as origional as possible - unfortunately i dont know where to find the right connector to wire in.

I am fed up of guessing these things and ordering connectors only to find they are the wrong type so does anyone either have one lying around or know of where i can cheaply get one. If a pic is needed please let me know...



[DanP]

It's a standard Molex KK connector. You can get them from RS and the pins. I had some issue with the pins off reels, much more success with bags of individual ones.

Dan



[chadsarcade]

To save you guessing, what you're looking for is a 15-way molex "KK" series 0.156" connector housing.

CPC/Farnell/RS may well stock them if you can't find a source. Sometimes I've had to buy larger connectors and cut them down.



[chubsta]

so would it be this?

http://uk.rs-online.com/web/p/pcb-connector-housings/6795114/



[chadsarcade]

so would it be this?

http://uk.rs-online.com/web/p/pcb-connector-housings/6795114/

Yep, that looks the part. Don't forget you'll also need the crimp terminals as DanP mentioned.

Worth checking out the other connectors too if you're refurbing the PSU - the input connector from the transformer is prone to arcing and blackening the pins/melting the connector.



[chubsta]

yeah, im going to get a few bits, the power supply isnt working at the moment so need to work out what is wrong - the -5v led is not lighting up - and get the parts to fix it, if possible, usually i end up doing more damage



[Judder]

A picture says 1000 words as these just happen to be on my desk at the moment

- Original burnt PSU connector

- Replacement new connector

- Complete Williams Harness connector replacement kit from The Real Bob Roberts

- Hanlong Tools HT-225D Full Cycle Ratchet Crimping Tool (awesome)

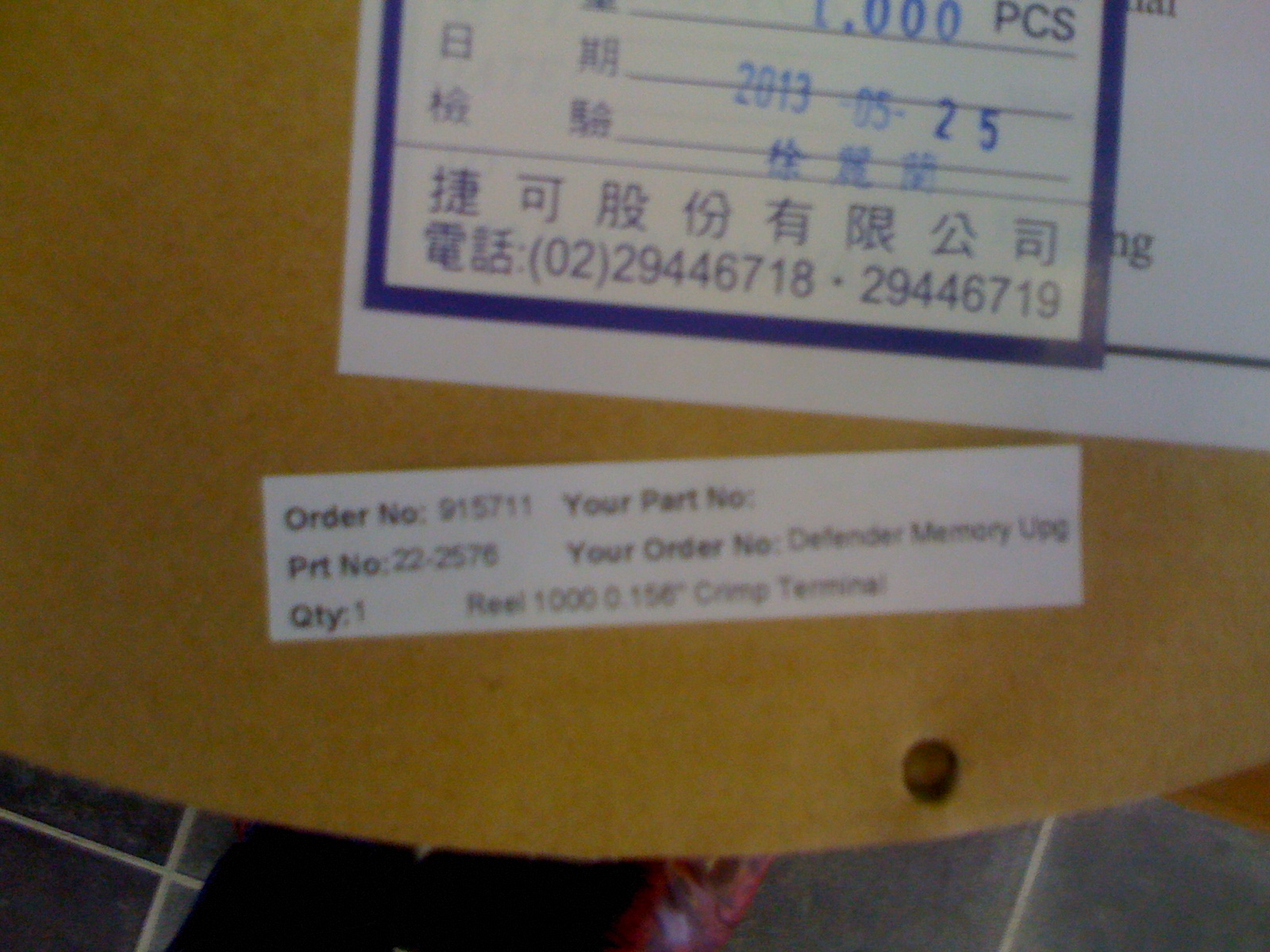

- Roll of 1000 156 Crimp Terminal (enough for a few rainy days here)

Not an expensive shopping trip and means you can just replace them all as you go

I also completely rebuilt my power supply which has some details here which might help

HTH
