Someone mentioned to me that an audio probe bare PCB was being sold on ebay for $15...

Just to let people know, the gerber files for the original PCB I designed back in 2016 (and sold for £2!) (details here http://www.ukvac.com/forum/audio-probe_topic355350.html) has kindly been hosted for the last month or so by Porchy on his website at https://www.jammarcade.net/wiki/index.php?title=Audio_probe

Download the ZIP file and send off to your favourite PCB manufacturer to get a PCB for a few £££. You should be able to build an entire audio probe for about £10. I still offer support for the design if you need it.

EDIT: Just to make it clear before anyone jumps in, the PCB design on ebay is not identical to mine, but is pretty similar and does the same thing

philmurr2020-02-05 09:39:21



[Ace`]

I still use mine all the time.



[Monstermug]

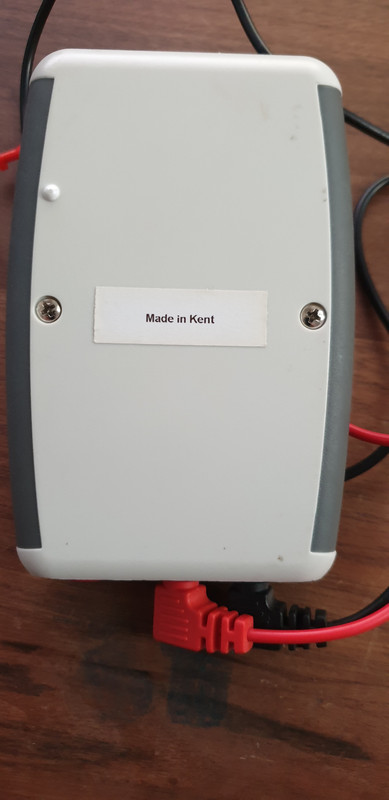

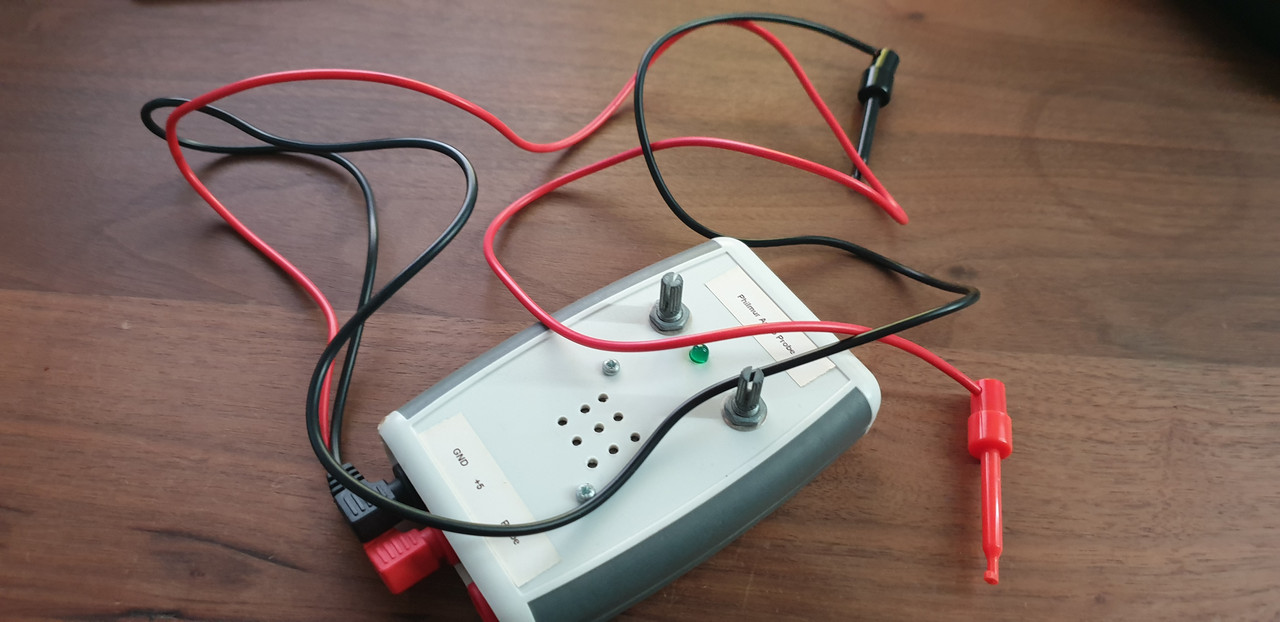

Can't stress how useful this probe is for audio faults. I loved mine so much I pimped it out.

Monstermug2020-02-05 14:48:45



[DataEast77]

Hey Guys
Would love to build one of these audio probes, I see the files are available to print some bare PCB's, anyone else interested in getting a few printed?

Cheers.

Mike.



[ShootTheCore]

Just to let people know, the gerber files for the original PCB I designed back in 2016 (and sold for £2!) (details here http://www.ukvac.com/forum/audio-probe_topic355350.html) has kindly been hosted for the last month or so by Porchy on his website at https://www.jammarcade.net/wiki/index.php?title=Audio_probe

Download the ZIP file and send off to your favourite PCB manufacturer to get a PCB for a few £££. You should be able to build an entire audio probe for about £10. I still offer support for the design if you need it.

Does anyone have a copy of the Gerber files for this audio probe that they'd be willing to share with me? The link on JAMMArcade.net is no longer valid.

Thank you!
