Taito cocktail jap pinout ?

[Retroman839]

Just picked up this jap space invaders 2
internals are unmolested .
I have a finger board adaptor to Finalizer in the I/o female connector ..

Can I get a converter to jamma for this pinout

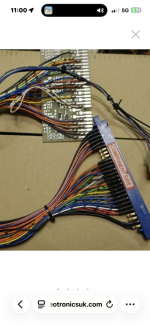

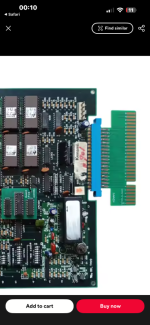

Here it is next to a jamma finger board
On an mvs 1 slot



[Alpha1]

That looks like it might be Electrocoin universal pinout.

Best to remove it and put a JAMMA edge on. As it's all labelled should be easy but time consuming swapping a wire over at a time.



[Retroman839]

That looks like it might be Electrocoin universal pinout.

Best to remove it and put a JAMMA edge on. As it's all labelled should be easy but time consuming swapping a wire over at a time.

Good idea ..
I didn’t think of that ..
Thanks ..

I was hoping that this was a common config and a cross over to jamma would be avalible to buy .



[Retroman839]

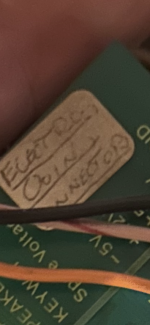

Electro
Coin
Connector

Key is at k rather than H ..
I guess it just changed now and then .



[Retroman839]

Didn’t you sell have a unigame to jamma adaptor for sale recently ?



[Retroman839]

Yeh unigame electrocoin pinout seems
To have the key at H
This has key at K..
I guess I need to just do this my self .



[Retroman839]

Can’t I just use a male
To male finger board in the taito classic to jamma them into this harmess?



[Retroman839]

Desolder the 36 Konami classic connector off .
Then solder a female 56 to the other side ?

Reversing it to jamma ?



[Retroman839]

Cool I found it ..

Electrocoin standerd pinout ..

Internet was throwing unigame pinout at me ..

ELECTROCOIN STANDARD CONNECTOR CHART
Underside
Ground
Ground
+5V
+5V
+12V
-5V
Not used
-12V
Keyway
Speaker 1
Speaker 1
Speaker 2
Player 2 Up
Speaker 2
Player 2 Right
Player 2 Button 1
Player 2
Player 2 Button 2
Player 2 Left
(Horizontal Sync)
Player 2 Start
Video Red
Video Green
Video Blue
Video Sync
Ground
Ground
Ground

Key way on pin 9 …

Cool I’m happy to make my own now 👍
