Announcing the vstcm Colour Vector generator

[english2]

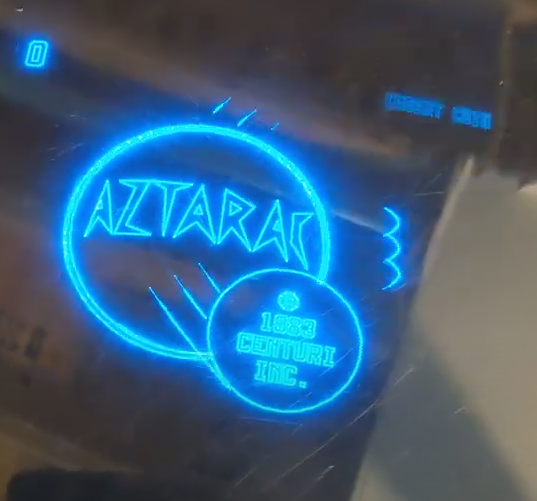

Anyone got their board built and working yet? Here's a video of Aztarac running on a Omega Race cocktail using the vstcm https://youtu.be/jpxfpJRRm98



[english2]

Just got Vector Kong working on the VSTCM, here's a quick video



[big10p]

Nice. I'm looking forward to playing Vector Kong on the next VecFever update, even though I'm rubbish at Donkey Kong.



[councilface]

Nice. I'm looking forward to playing Vector Kong on the next VecFever update, even though I'm rubbish at Donkey Kong.

Lol exactly this



[english2]

I've provided the source code to Graham Toal with the intention of bringing this to the Pitrex.



[big10p]

I've provided the source code to Graham Toal with the intention of bringing this to the Pitrex.

Nice one. Be good if it was playable on PiTrex, too.



[english2]

Just for fun and to explore the capabilities of the VSTCM, I made Defender run on the VSTCM and it is converting graphics from raster to vector on the fly (apologies for the pitiful camera quality)...
https://www.youtube.com/watch?v=wfM-jifjRzk[font="Segoe UI, Helvetica Neue, Helvetica, Roboto, Oxygen, Ubuntu, Cantarell, Fira Sans, Droid Sans, sans-serif"]
[/font]

english22023-01-05 19:52:04



[2huwman]

That's really cool!

By the way, the link's not working for me but I found it searching on YouTube.



[english2]

Thanks! just corrected the link (don't know why but it the Youtube button is not working for me at the moment, it says youtube refused connection, so have just put a standard hyperlink).



[english2]

I've just added a monochrome option to the code on Github (https://github.com/english1234/vstcm) so that it works better on monochrome vector monitors. Here's a test of Tempest on a G05 from an Asteroids Deluxe. I've used the max value of RGB for the Z input as a starting point (I tried averaging but this didn't seem as good).



[Alpha1]

Amazing work



[english2]

If anyone is interested in building one of these, I have 5 blank V3 PCBs.
I'd be interested to know if anyone on here has built one, and if so get some feedback and see some pictures.



[english2]

4 left



[english2]

3 left



[english2]

1 left!



[english2]

All gone. Looking forward to seeing your builds on here!



[english2]

For anyone building a board, just a quick correction made to the downloadable BOM text file today: U3 is a LP2950 3.3V and not 5V. The schematic and PCB were already correct. The text file on Github has been updated.



[english2]

Someone on K.L.O.V just built a board and got it running. I also added a PDF with screen grabs to show the programming process for the Teensy.
https://forums.arcade-museum.com/th...m-colour-vector-generator.505940/post-4783140



[jose_swervo]

Hi, sorry to resurrect an old thread.

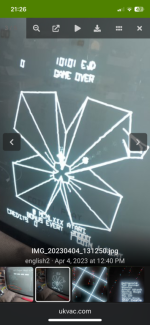

Fantastic work! I built one but I am getting funny squigly vectors on my g02-805. Please see the pictures. Any ideas what could cause this? The crosshatch from my asteroids board is not like this so thinking it’s not the deflection board.
Thanks in advance for any help



[Retroman839]

Guy has these on his own set up?

Seem to be on every vector
Some kind of ac interfearance .
