Grounding

[Rawsome]

Hi, when you ground arcade buttons, the diagrams that I've looked at normally have three terminals on the button. Mine have two. What's the protocol for grounding gold leaf buttons?



[cosine]

Shouldn't matter which way they're connected I would think, I use sanwa buttons (not entirely the same I know) and they don't care so long as a contact is made when the button is pressed. If anything, I make sure the ground is connected to right side terminal of the button on all of them, so it's consistent.



[Rawsome]

Thanks, I was waiting for someone to say what I was thinking. I appreciate your response



[Rawsome]

I assume it's OK to skip a connector for length reasons when grounding?



[tazfaedodge]

Don't know if these well help.

Nick



[cosine]

I assume it's OK to skip a connector for length reasons when grounding?

Yep



[Rawsome]

Thanks guys, that helps a lot. However, I have another problem now. The buttons fit a 4.8mm crimp, but the joystick has much bigger connectors. Would I be ok to make some extensions and connect via male to female crimps once I found out what size I need?

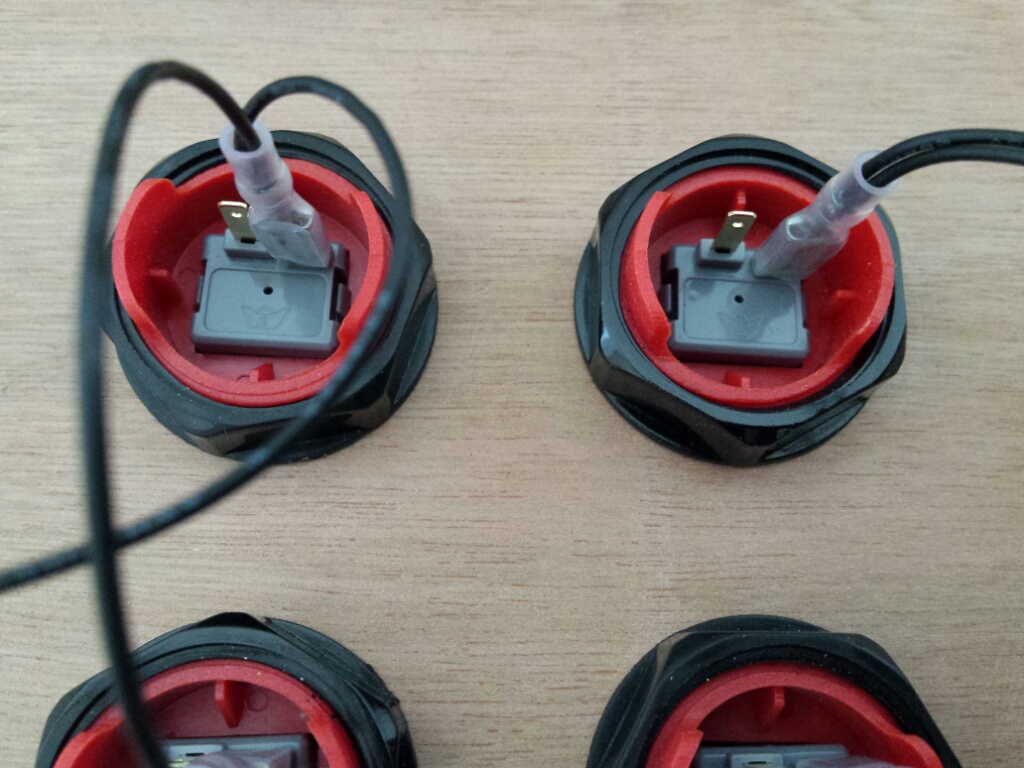

Here's a couple of pics to show what I mean.



[Rawsome]



[Rawsome]

If anyone knows what size crimps would be needed for this, that would be awesome. The joystick is a Mag Stick if that helps.

Thanks.



[muddymusic]

6.3mm on the stick.



[Rawsome]

Thanks Muddy, that's awesome!
