IC ID for Phoenix HElp?

[Judder]

Hi guys (Hi Paul!)

My Taito one has the daughter board on it and there's some pretty good shots of it here

Bring out your Phoenix

http://www.ukvac.com/forum/bring-out-your-phoenix-boardsets_topic346283.html

I can measure all of the resistors etc when I'm in the office next week where it is if that helps and then can add to your schematic Sarj

Regards

Alex



[silverfox0786]

that would be fantastic alex



[Judder]

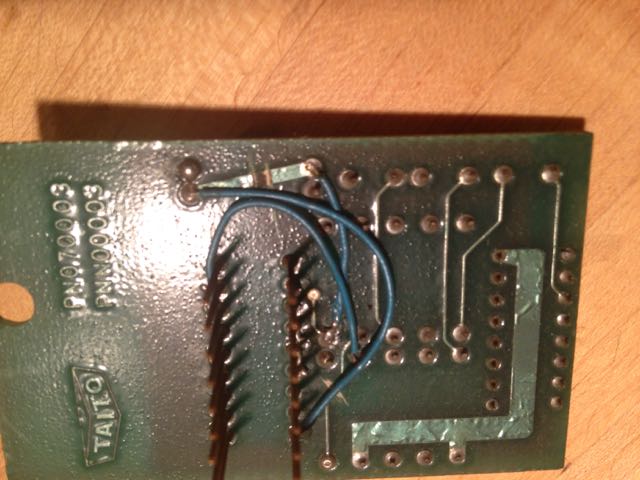

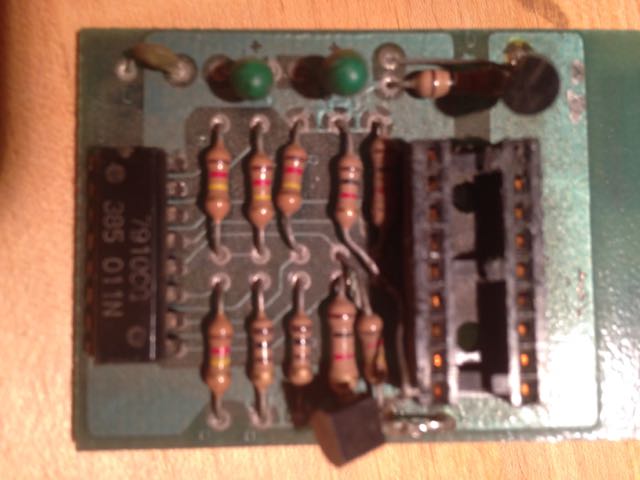

Here you go Sarj

Hope your eye sight is pretty good as the soldering is a bit dodge to say the least and my handwriting shows obvious signs of using a keyboard all day long

It's an original Taito part interestingly - PN07003

Resistors

- 120 kOhm (Brown Red Yellow?)

- 1 kOhm (Brown Black Red?)

- 100 Ohm (Brown Black Brown?)

Capacitors

- 7.5uF (fat green ones)

- 26pF (tiny one)

Transistors

- C1815 (link to datasheet)

3 of the legs on the bottom are joined by solder (middle 3 on one side, pins 4, 5 and 6)

Wires go to legs 1 and 12
