Hi All
I've got some Jamma adaptors that i appear to have made in the past but have not labeled them to say what they are.. DOH !!
A long shot but if anyone can ID these based on the pinout that would be helpful.

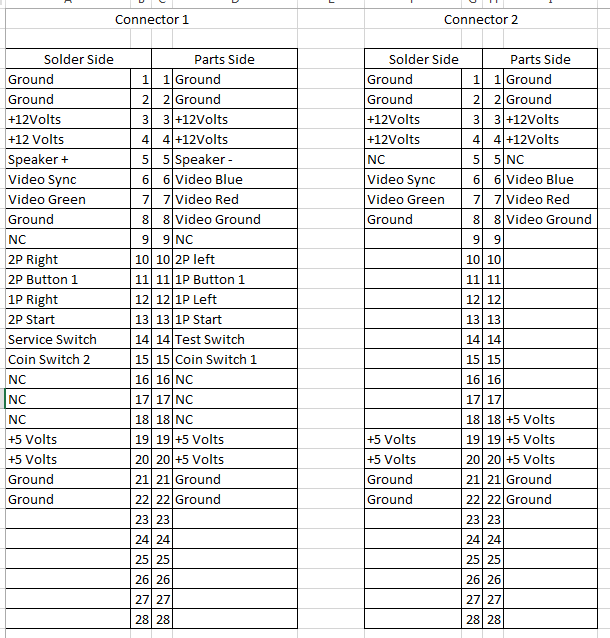

Connector 1 & 2 both 22 pin & appear to be the same, i think Connector 2 was a replacement for #1 before i found it and stopped completing it or was an unknown board with similar pinout.

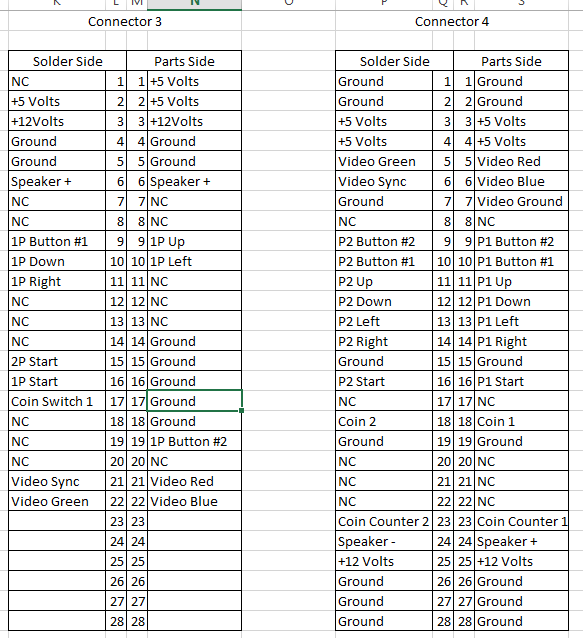

Connector 3 (22 pin) totally weird pinout ?!? and 4 was the only 28 way adapter i had without a label.
Thanks in advance.
Andy
