Ls30 rotary to usb

[Retroman839]

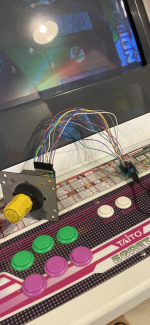

Ignore the wiring i think I took this pic
When I had wired it in reverse !
Correct wiring



[esoteric_rt]

I'm trying to find a solution myself to connect a set of LS-30's. It seems those Ultimarc encoders are long gone and the best option still available today is the GP-Wiz40 from Groovygamegear



[Retroman839]

I’m not sure if you can use a
ATTiny 85



[esoteric_rt]

I’m not sure if you can use a
ATTiny 85

Thanks, I had seen that. A bit too complicated for me unfortunately.



[Retroman839]

Thanks, I had seen that. A bit too complicated for me unfortunately.

Since then there are usb versions
I will look into it and see if any on the market look possible.
Needs the 13 I/0’s that sees to be the short coming



[Fantazia2]

Since then there are usb versions
I will look into it and see if any on the market look possible.
Needs the 13 I/0’s that sees to be the short coming

It doesn't need 13 inputs, it's actually only 12 inputs and ground, but the Arduino versions only use 3 or 4 inputs.

Every 3 or 4 connections are daisy chained together so when you turn the stick the inputs get switched

1 2 3 1 2 3 1 2 3

Or in the opposite direction

3 2 1 3 2 1 3 2 1

And from that the code on the Arduino can tell which direction the stick is being turned in and send the same key presses as the ultimarc controller does, or whatever mapping you want to use.

I'm pretty sure the version you've linked works like this with the daisy chaining of the Switches done on the PCB before it hits the inputs.



[yoganuggy]

Groovygamgear has the gpwiz-40 product: https://groovygamegear.com/webstore/index.php?main_page=product_info&products_id=234



[Retroman839]

It doesn't need 13 inputs, it's actually only 12 inputs and ground, but the Arduino versions only use 3 or 4 inputs.

Every 3 or 4 connections are daisy chained together so when you turn the stick the inputs get switched

1 2 3 1 2 3 1 2 3

Or in the opposite direction

3 2 1 3 2 1 3 2 1

And from that the code on the Arduino can tell which direction the stick is being turned in and send the same key presses as the ultimarc controller does, or whatever mapping you want to use.

I'm pretty sure the version you've linked works like this with the daisy chaining of the Switches done on the PCB before it hits the inputs.

Attiny 85 has 8 inputs it’s only like £3

Mini ATTINY85 Micro USB Development Programmer Board For Tiny85-20PU DIP-8 IC | eBay

USE ATTINY85-20PU DIP CHIP, Pluggable. ATTINY85-20PU DIP-8 IC. 1PC x ATTINY85-20PU IC MCU 8BIT 8KB FLASH 8DIP Top.
