MB14241 video shifter replacement daughterboard

[kold666]

the pins of the ICs you listed to be changed are now connected to other ICs.

Should I cut also tracks and trace them as you indicated?



[yorkshire_spam]

I think the daughter board on the Cosmic Monsters acts as a substitute for 3 shifters?
I might have a schematic somewhere that I drew when I was fault-finding it.

Yep, page 4 of the PDF I attached here: https://forums.arcade-museum.com/threads/universal-cosmic-monsters-partial-schematic.486462/



[Lurch666]

the pins of the ICs you listed to be changed are now connected to other ICs.

Should I cut also tracks and trace them as you indicated?

There is one track that needed to be cut (the one between pins 10 and 13 on 4C) but I don't understand what you mean by 'trace them as indicated'.



[Lurch666]

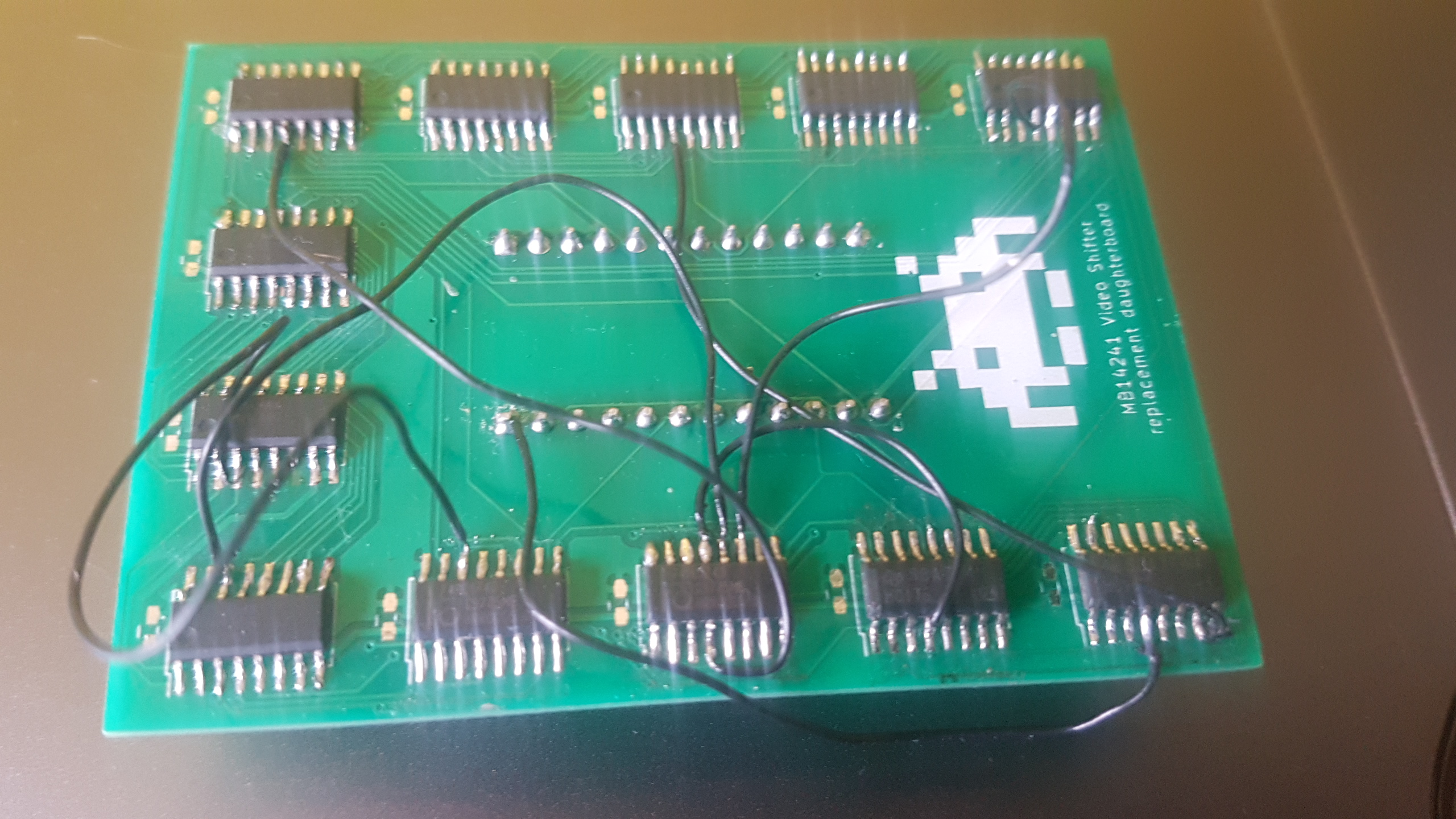

Retromaniac2 who Provided the PCBs for me ask for a picture of the patch wires I added to this PCB so here it is.



[kold666]

Thanks, i Will try to update the pcb in these days



[kold666]

updated the gerbers with the corrections of Lurch666!



[Ronnie Dent]

Are these available to buy?



[kold666]

You can download the gerbers and buy them directly at one of the pcb manufacturing services lole pcbway or jlcpcb
