Problem Toei Chassis/Tube Swap

[jerryspaghetti]

cheers …
Yeh will 3r3 first ..👍
Might as well swap them 2 electro caps too

@Retroman839

Dude if you're ordering the correct resistor/caps for that mod can you order extra for me and i'll cover all the cost/postage.

My brain just does not compute when it comes to resistors and their values or even which way round they're suppose to be installed.



[Retroman839]

@Retroman839

Dude if you're ordering the correct resistor/caps for that mod can you order extra for me and i'll cover all the cost/postage.

My brain just does not compute when it comes to resistors and their values or even which way round they're suppose to be installed.

Of course mate no worries 👍



[jerryspaghetti]

Of course mate no worries 👍

Diamond!



[gunblade]

metal oxide, looks like 2 or 3 watt due to size



[Retroman839]

I recently picked up
A lot of components from a
Retired electronics guy
I want to give them away


Thousands of resistors and caps etc …

I don’t know if ok or not..

Will take pics and list in free section soon



[Retroman839]

metal oxide, looks like 2 or 3 watt due to size

Yeh .. it’s big



[Retroman839]

I might have em will check in bit



[Retroman839]

Only 1w and small type ?



[gunblade]

you can test it with 1w but i would suggest 2 or 3w when you get right value



[Retroman839]

you can test it with 1w but i would suggest 2 or 3w when you get right value

Ok cool ..



[jerryspaghetti]

you do not want to be running the b+ above 76v
the next step is replace the value of the cap that controls the width, i think its c531 - what value is in there now

Hi mate, that cap is 564J DH 200 SA

See pic attached



[gunblade]

what about c519



[gunblade]

c531 has option for 560nf or 330nf, 330nf will increase width



[jerryspaghetti]

what about c519

That one is 824J DH 200 SA



[gunblade]

there is an option for 680nf at c519



[jerryspaghetti]

Thanks so I need to order the following?…

330nf 200v

And

680nf 200v

I’m finding 400v rating is that acceptable or needs to be 200v?



[gunblade]

400v is fine ,metalized polyester or polypropylene



[jerryspaghetti]

Ok so gonna order these…

https://www.ebay.co.uk/itm/30164817...6CuAzJmRFe&var=&widget_ver=artemis&media=COPY

And these…

https://www.ebay.co.uk/itm/29147856...6CuAzJmRFe&var=&widget_ver=artemis&media=COPY



[gunblade]

I am not sure about them for the that particular circuit, these would be better

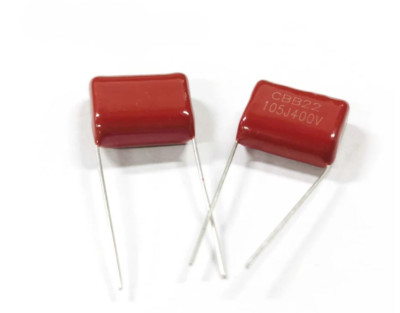

(5pcs) Metallized Polyester Film Capacitor 400V 10nF to 3,3uF UK | eBay UK

Find many great new & used options and get the best deals for (5pcs) Metallized Polyester Film Capacitor 400V 10nF to 3,3uF UK at the best online prices at eBay UK! Free delivery for many products!

www.ebay.co.uk



[jerryspaghetti]

I am not sure about them for the that particular circuit, these would be better

(5pcs) Metallized Polyester Film Capacitor 400V 10nF to 3,3uF UK | eBay UK

Find many great new & used options and get the best deals for (5pcs) Metallized Polyester Film Capacitor 400V 10nF to 3,3uF UK at the best online prices at eBay UK! Free delivery for many products!

www.ebay.co.uk

Nice one I’ve ordered those instead. Thanks again for the great advice
